FOR
MONOLAYER BLOWN FILMS
FTS – MNL Series
The Corona treatments for Plastic films system is designed for Monolayer Blown films. The Corona treatments for Plastic films system FTS- MNL SERIES can be used to for Monolayer Blown films. The corona treatment for blown film extruders system consists of a generator, oil cooled high voltage transformer, pneumatic operated electrode assembly.
Main Features
- Key type electrodes for skip treatment and fin type electrodes for fixed treatment
- Aluminum rollers are covered with pure dialectric ozone resistance sleeve for long life.
- Guide rollers for entry and exit of film.
Specifications
- Width: 500mm - 1100mm
- Line speeds: 40 mtrs/min for printing applications.
Safety Features
- Zero speed cut off
- Active spark protection
- Assembly door open cut off
FTS – MNL-ABA Series
The Corona treatment on Plastic film FTS – MNL-ABA Series is specially designed for A-B-A Blown film extruders. Corona treatment for blown film extruders consists of the generator, oil cooled high voltage transformer, pneumatic operated electrode assembly and ozone extraction system.
Main Features
- The Corona treatment on Plastic film uses Key type electrodes for skip treatment and fin type electrodes for fixed treatment.
- Aluminum rollers are covered with pure dialectric ozone resistance sleeve for long life.
- Guide rollers for entry and exit of film.
Specifications
- Width: 500mm - 1100mm
- Line speeds: 80 mtrs/min for printing applications.
Safety Features
- Zero speed cut off
- Active spark protection
- Assembly door open cut off with Audio / Visual alarm
FOR
MULTILAYER BLOWN FILMS

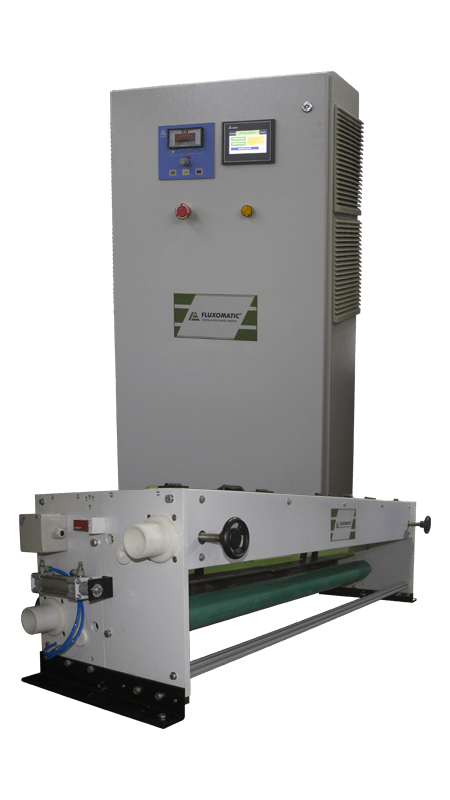

FTS – MML Series
The Corona treatment on Plastic film system is designed for Multilayer Blown films extruders. Corona treatment for blown film extruders consists of the generator, oil cooled high voltage transformer, pneumatic operated electrode assembly and ozone extraction system.
Main Features
- Easy to maintain fin type electrodes for fixed treatment and micro gap adjustments.
- The Corona treatment on Plastic film uses aluminum rollers that are dynamically balanced, covered with pure dielectric ozone resistance sleeve for long life.
- Guide rollers for entry and exit of film.
Specifications
- Width: 1100mm - 2600mm
- Line speeds: 80 mtrs/min for lamination applications.
Safety Features
- Zero speed cut off
- Active spark protection
- Over temperature cut off
- Single phase preventer
- Speed to power
- Assembly door open cut off with Audio / Visual alarm
FTS – MML-IBC Series
The Corona treatment on the Plastic film system is designed for IBC Blown film extruders. It consists of the generator, oil cooled high voltage transformer, pneumatic operated electrode assembly and ozone extraction system.
Main Features
- Corona treatment for blown film extruders are easy to maintain and use fin type electrodes for fixed treatment and micro gap adjustments.
- Aluminum rollers are dynamically balanced, covered with pure dialectric ozone resistance sleeve for long life.
- Guide rollers for entry and exit of film.
Specifications
- Width: 1100mm - 2600mm
- Line speeds: 120 mtrs/min for lamination applications.
Safety Features
- Zero speed cut off
- Active spark protection
- Over temperature cut off
- Single phase preventer
- Speed to power
- The Corona treatment on the Plastic film has assembly door that opens cut off with Audio / Visual alarm.
FOR
CONDUCTIVE & NON-CONDUCTIVE FILMS
FTS – CM-BR Series
Corona treatment for blown film extruders system is designed for Conductive and Non Conductive films for lamination and printing machines.The Corona treatment on the Plastic film consists of the generator, oil cooled high voltage transformer, pneumatic operated electrode assembly and ozone extraction system.
Main Features for CM Model
- Ceramic electrode system with micro gap adjustment.
- Aluminum rollers are dynamically balanced and external drive arrangement for synchronising with machine speed.
- Guide rollers for entry and exit of film.
Main Features for BR Model
- The Silicone roller electrodes in The Corona treatment on the Plastic film are driven externally.
- Aluminum rollers are dynamically balanced and external drive arrangement for synchronising with machine speed.
- Guide rollers for entry and exit of film.
Safety Features
- Zero speed cut off
- Active spark protection
- Over temperature cut off
- Single phase preventer
- Speed to power
- Assembly door open cut off with Audio / Visual alarm
Specifications
- Width: 500mm - 1700mm
- Line speeds: 300 mtrs/min
FTS – NCF Series
The Corona treatment on the Plastic film system is designed for Non Conductive films for lamination, coating and printing machines. It consists of the generator, oil cooled high voltage transformer, pneumatic operated electrode assembly and ozone extraction system.
Main Features
- Easy to maintain fin type electrodes for fixed treatment and micro gap adjustments.
- Aluminum rollers are dynamically balanced, covered with pure dialectric ozone resistance sleeve for long life.
- The Corona treatment on the Plastic film guide has rollers for entry and exit of film.
Specifications
- Width: 500mm - 1700mm
- Line speeds: 300 mtrs/min for lamination applications.
Safety Features
- Corona treatment for blown film extruders has zero speed cut off system.
- Active spark protection
- Over temperature cut off
- Single phase preventer
- Speed to power
- Assembly door open cut off with Audio / Visual alarm
